90° slide with pneumatic pressure

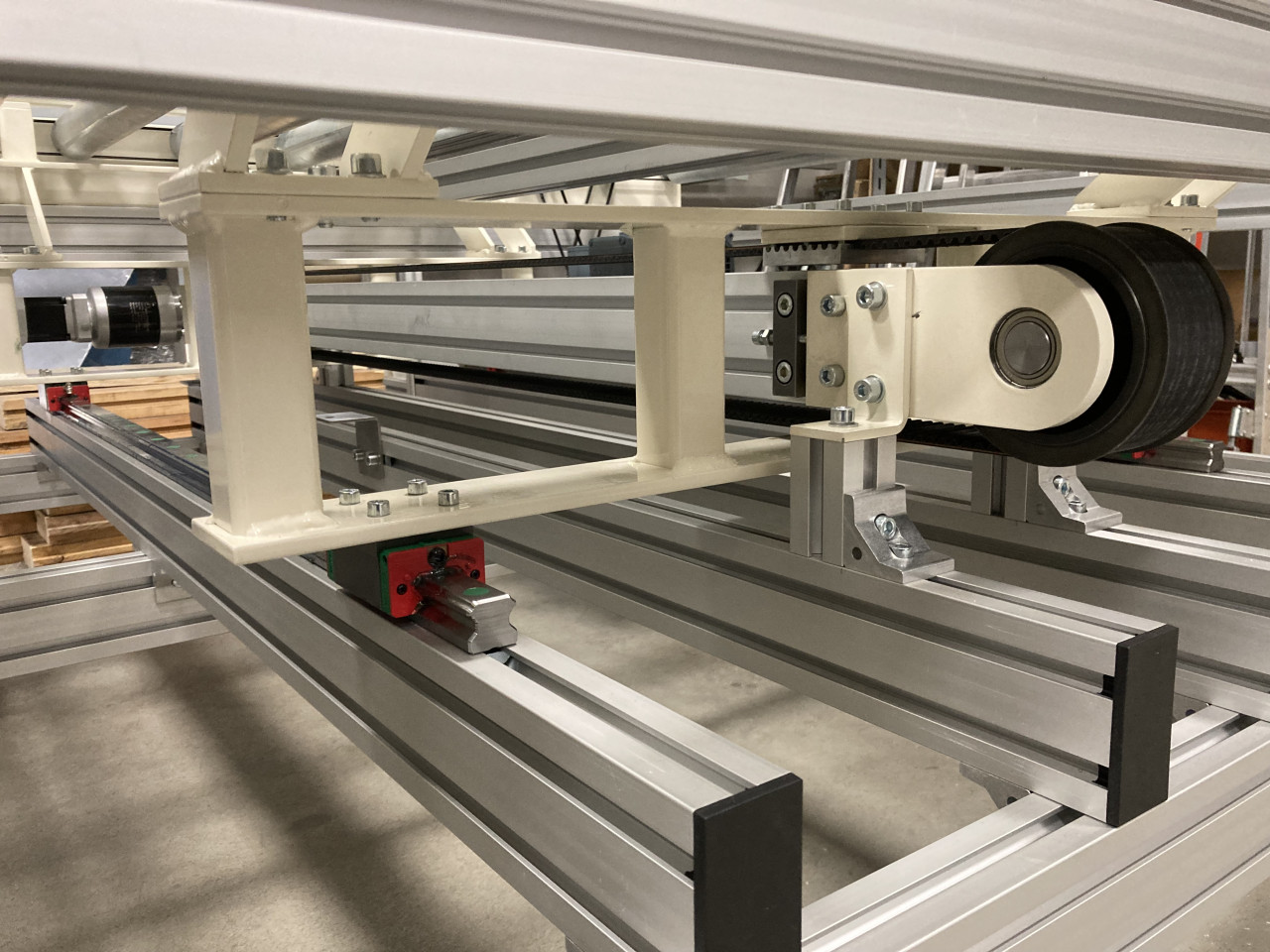

A 90° slide as the final part of a production line for transporting modular profiles in cardboard boxes. The shifting machine is equipped with a pneumatic pressure that lifts the belt conveyors, which then move the load laterally. The boxes are then removed by a robot and stored on pallets.

 The rollers are driven by 24 VDC electric cylinders from ITOH DENKI.
